Picture & Fixed Windows

Picture & Fixed Windows in Pompano Beach, FL | TruePane Windows & Doors

Picture and fixed windows are the non-operable workhorses of Florida coastal design. They don’t open, they don’t slide, and that’s exactly the point. These are laminated impact glass panels built to frame the view and take a direct hit from storm debris without surrendering the opening. In Pompano Beach, where east-facing elevations catch hard afternoon sun and hurricane-force wind off the Atlantic, homeowners choose fixed impact windows for wide sightlines, natural light, and a system that holds its rating year after year. TruePane Windows & Doors installs these across PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, always to HVHZ-compliant practice. Call (863) 591-8673 to start a project or schedule a measurement.

Call (863) 591-8673

Product Overview - Picture & Fixed Windows

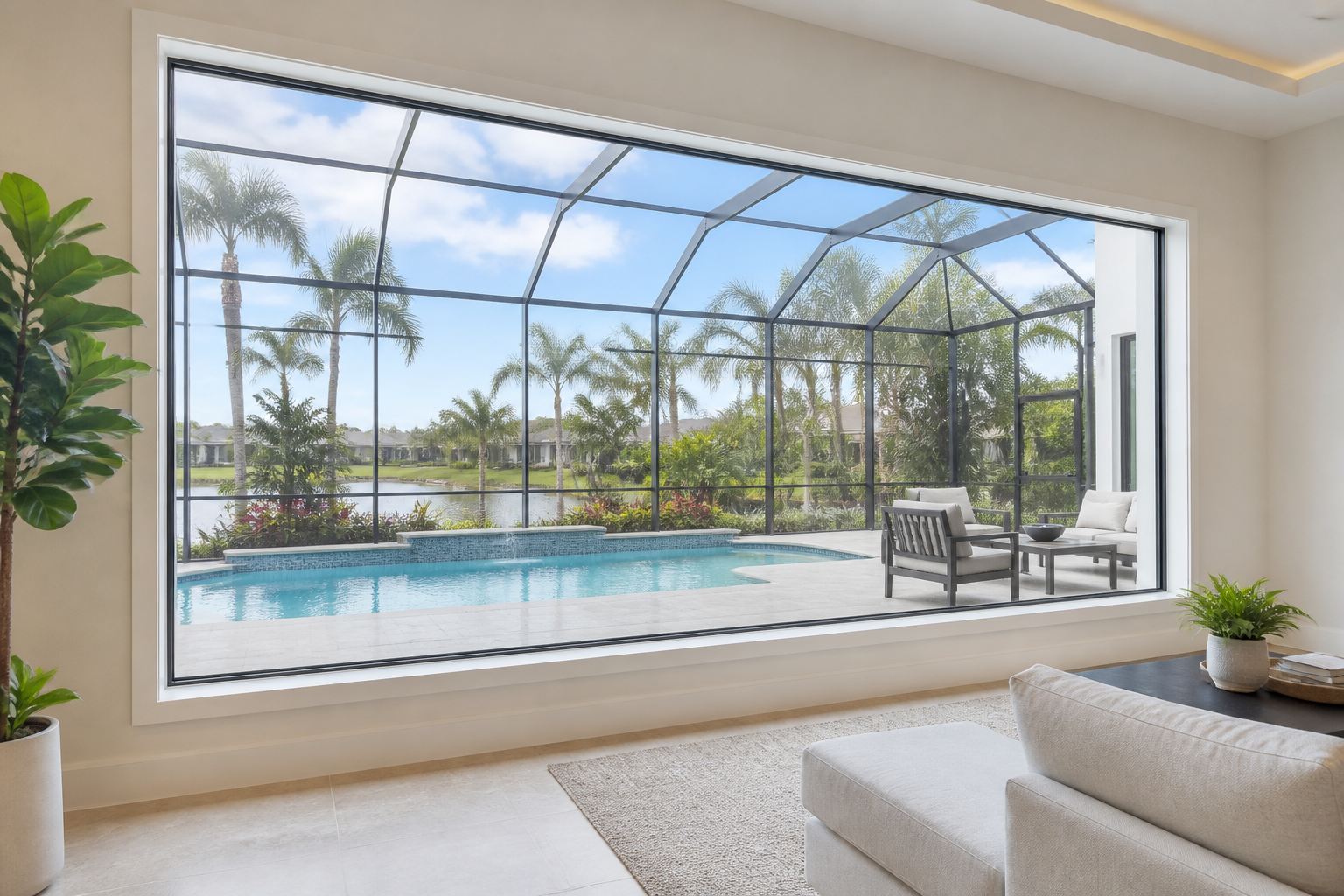

Picture windows are the profile you spec when the view is the feature and the opening doesn’t need to breathe. In Pompano Beach, that means wide panels facing the Intracoastal, fixed gables above a bank of sliders, or low-sill units that turn a living room wall into a light box. Because the sash is fixed, the frame carries glass edge-to-edge with no operable hardware to flex under load. That’s a real advantage in hurricane-prone construction: fewer moving parts, fewer failure points, and a cleaner line for the laminated impact glass to do its job.

These units are most often paired with operable windows on either side. A fixed center panel flanked by two horizontal rollers or casements gives you ventilation when you want it and unimpeded glass where you don’t. TruePane Windows & Doors sizes and installs that full assembly as one engineered system, not three unrelated windows. Frame materials are aluminum or vinyl, both suited to the salt air and humidity we deal with in Pompano Beach, and every configuration is built around the same laminated glass technology our impact doors and sliders use. The result is a window that looks like a sheet of glass and performs like a structural wall component.

We carry this profile across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, so the engineering is never a guessing game. You get the right product for the opening, the right design pressure for the wind zone, and an installation that keeps the rating valid.

Technical Specifications

Here’s what we’re working with on picture and fixed window projects in Pompano Beach. These numbers and options come straight from the product data for the lines we install.

• Frame materials: Aluminum or vinyl. Aluminum handles larger spans and thinner sightlines; vinyl brings strong thermal performance at a lighter price point.
• Maximum size: Up to 120 inches wide. That’s a ten-foot-wide uninterrupted glass panel, which covers most residential openings in Pompano Beach without needing a mullion.
• Glass options: Laminated impact glass with a PVB interlayer, Low-E insulated glass, tinted glass, or clear glass. Laminated is the core; Low-E and tint stacking comes down to heat and glare priorities.
• Finish options: White, almond, bronze, black, or tan. These colors cover the standard coastal palette we see from Harbor Village to Garden Isles.
• Compliance: Miami-Dade NOA and Florida Product Approval numbers available per configuration, engineered to Florida Building Code HVHZ requirements.
• Design pressure: Matched to your wind zone, up to +/-100. We never spec a pressure rating higher than the window actually needs.

Hurricane & Compliance Performance

Laminated Impact Glass
Two panes of glass bonded with a PVB interlayer. When debris hits, the glass may crack but the interlayer holds the broken pieces in the frame, keeping the building envelope sealed. That’s the mechanism that makes an impact window an impact window.

Miami-Dade NOA / FL Product Approval
Each configuration carries a Miami-Dade NOA or Florida Product Approval number. These numbers are issued per product, per size, per configuration. We verify the exact approval on your specific quote before anything gets ordered, so there’s no surprise during plan review.

FBC / HVHZ Compliance
Engineered to Florida Building Code High-Velocity Hurricane Zone requirements. Pompano Beach sits inside the HVHZ, so this isn’t optional. A window without HVHZ-compliant testing is a window that fails permitting in Broward County.

TAS 201 / 202 / 203 Testing Context
HVHZ-rated products are tested under the TAS protocol family: TAS 201 for large-missile impact, TAS 202 for cyclic wind-pressure loading, and TAS 203 for forced-entry resistance. These tests simulate the repeated pressure cycles a hurricane puts on a window, not just a single gust.

Design Pressure for Your Wind Zone
Design pressures are matched to your wind zone, up to +/-100, never higher. A window rated for more pressure than it needs means you’re paying for engineering your site doesn’t require. We size the rating to the actual wind load calculation for your Pompano Beach address.

Energy Performance
Low-E and insulated glass options are available. The Low-E coating cuts solar heat gain, which matters on large fixed panels that sit in direct Florida sun for hours. Insulated glass adds a thermal break that reduces heat transfer through the frame cavity.

Color & Glass Options

The color and glass decisions on a picture window are the two things that change how the whole room feels. In Pompano Beach, we see a lot of white and almond frames on coastal and Mediterranean-style houses, where the window should disappear into the stucco and let the glass do the talking. Bronze and black read more contemporary and pair well with darker roof lines or modern builds along the Intracoastal. Tan splits the difference and works nicely on older South Florida ranch homes that want a warmer neutral without going full beige.

On the glass side, clear laminated impact glass is the most common choice for view-facing openings. Tinted glass cuts glare and is worth considering for east or west elevations that catch low-angle sun. Low-E insulated glass is what we recommend for large fixed panels where heat gain is a real comfort issue. You can stack Low-E with tinted glass if the room runs hot, and the combination works well in Pompano Beach where afternoon sun hits south-facing living spaces hard. Your PGT, CGI, CWS, ES Windows, ECO, or Mr-Glass line rep will have specific glass package availability, and we’ll walk you through the tradeoffs during the estimate.

Installation by TruePane Windows & Doors in Pompano Beach

An impact window is only as good as the installation around it. The NOA rating applies to the product, but the assembly only performs to that rating when the window is set correctly in the opening. We’ve seen what improper installation does in Pompano Beach: water intrusion at the sill, air leaks at the head, and frames that rack out of square because the rough opening was never checked. That’s why our process starts before the old window comes out.

We inspect the rough opening, check the substrate for rot or termite damage, and verify the opening dimensions against the approved product size. Then we set the unit level, plumb, and square, using shims and anchoring per AAMA 2400/2410 practice. The perimeter gets AAMA 812 low-expansion foam sealant, which fills the gap without bowing the frame. A final water test confirms the seal before interior trim goes back on. In Pompano Beach’s coastal exposure zones, we also pay close attention to the sill pan and the head flashing, because wind-driven rain doesn’t fall straight down. Permitting awareness matters here too: most Broward County jurisdictions require the NOA or Florida Product Approval number on the permit submittal, and our quotes include the documentation you’ll need. The difference between a window that leaks at year five and one that’s still dry at year fifteen is almost always the install, not the product. Call (863) 591-8673 and we’ll come measure the opening and talk through the full scope.

Frequently Asked Questions - Picture & Fixed Windows

Get a Quote - Picture & Fixed Windows in Pompano Beach

If you’re planning a picture window replacement or a new build opening in Pompano Beach, we’ll come measure, review wind zone requirements, and put together a line-item quote with the NOA documentation included. No pressure, no guesswork. Call (863) 591-8673 to schedule your free on-site measurement and project estimate.

Written by the team at TruePane Windows & Doors, serving Pompano Beach since our founding as a Florida hurricane-impact window and door specialist.
