AfterVLX 100 Pivot Door in Pompano Beach, FL | TruePane Windows & Doors

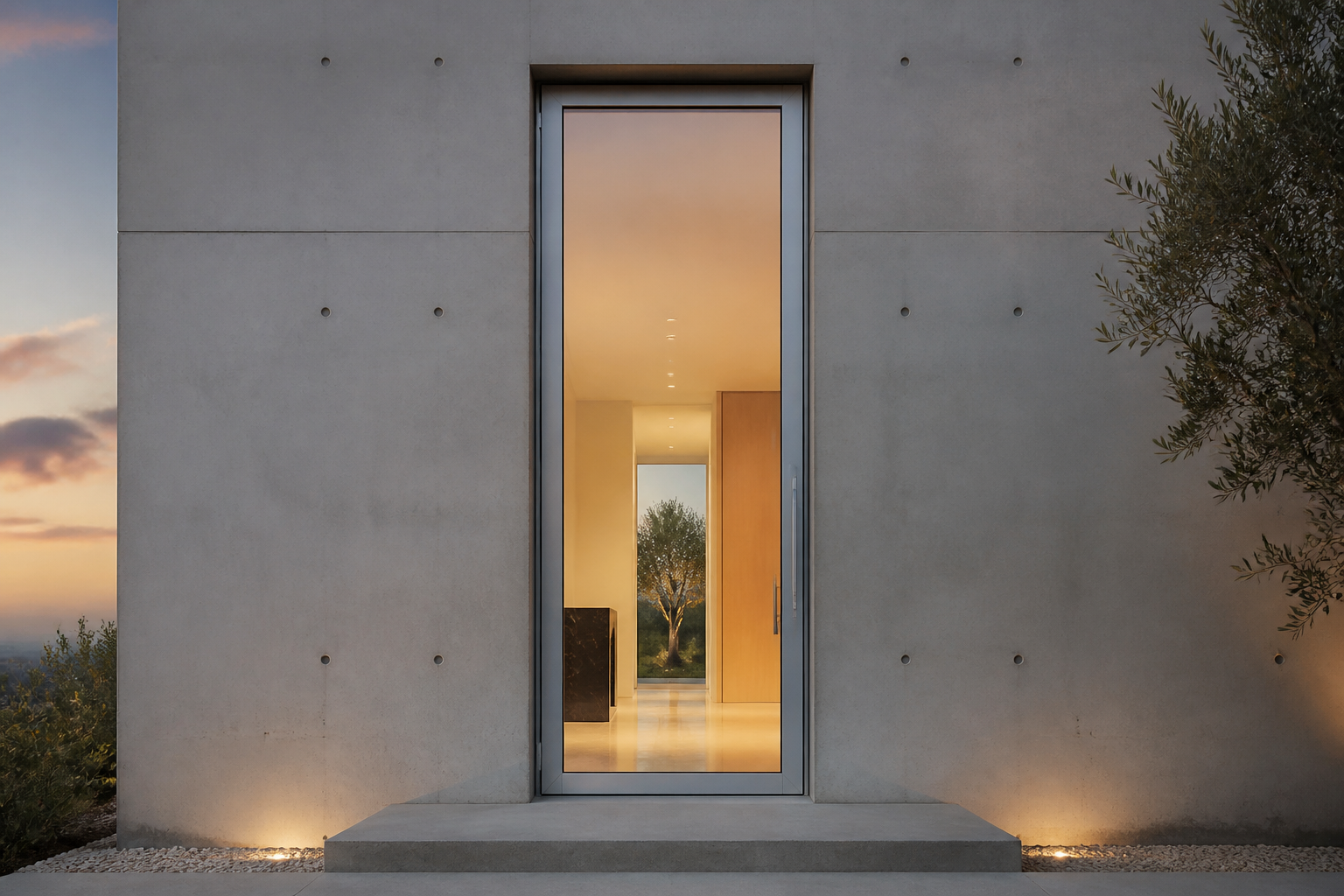

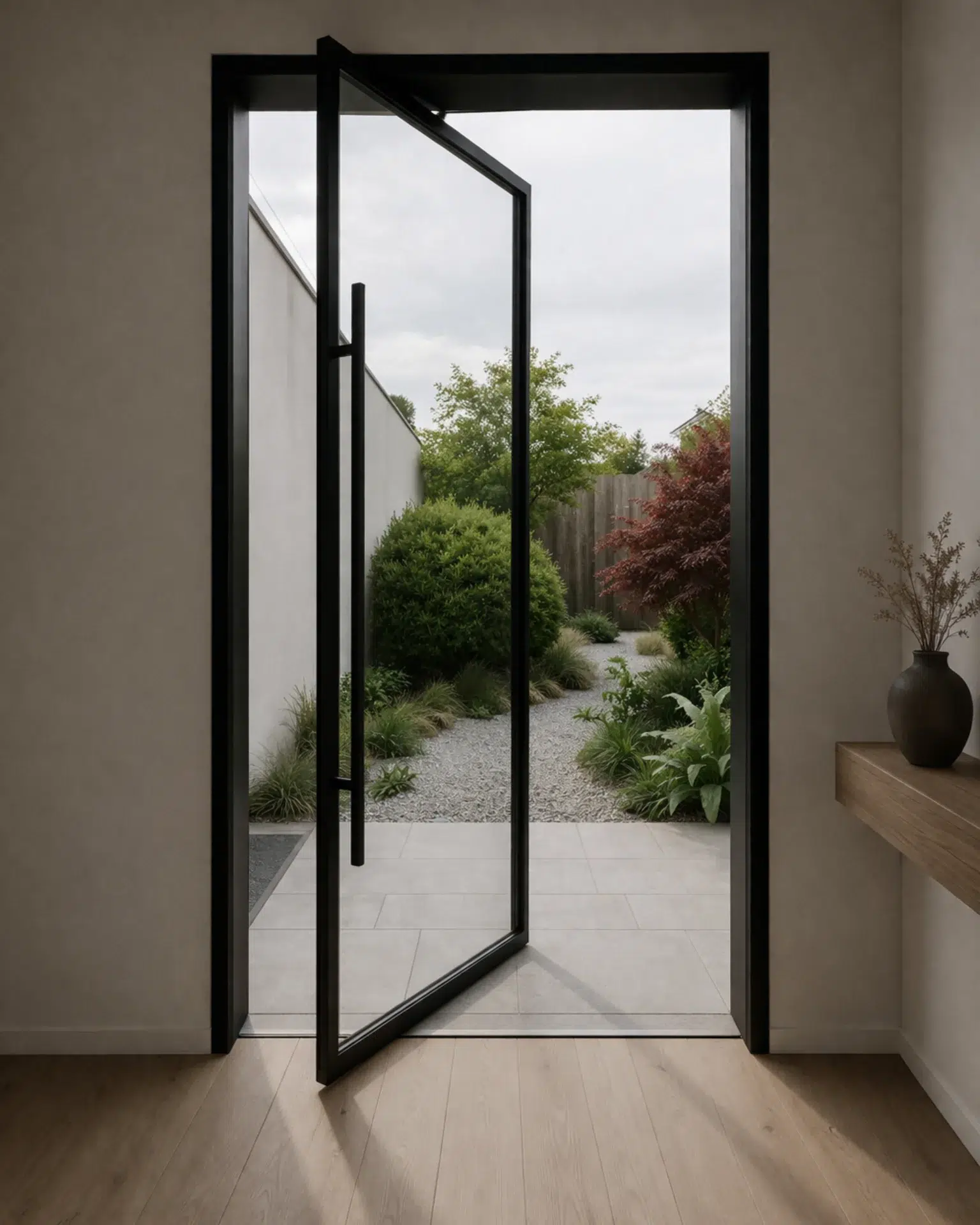

The VLX 100 Pivot Door is a heavy-duty aluminum entry system that rotates on a vertical center axis instead of traditional side hinges, allowing for dramatically wider glass panels and a clean, gallery-like opening. We’re seeing strong demand for it across Pompano Beach, from waterfront modern builds on the Intracoastal to mid-century renovations in Garden Isles and Harbor Village. TruePane Windows & Doors is an authorized ViewLux installation partner, which means you get factory-backed product support paired with local installation expertise that keeps your warranty intact. Call (863) 591-8673 to talk through sizing, glass, and finish options for your Pompano Beach project.
Product Overview - VLX 100 Pivot Door
The VLX 100 is built around a simple idea: the door should disappear and leave the view. By mounting the slab on a top and bottom pivot point rather than side hinges, the door can be wider than a conventional hinged panel, and the weight rides through a steel-reinforced aluminum extrusion rather than pulling on frame corners. That engineering choice is what lets a single panel reach up to 60 inches wide and 120 inches tall while still operating smoothly day after day.
The frame is substantial without looking industrial. The 2.56-inch profile width reads as a thin line against the glass, and the 0.098-inch wall thickness gives the extrusion enough rigidity to hold a large tempered or laminated panel without flexing in Pompano Beach’s coastal wind conditions. We install these in entry foyers, courtyard-facing walls, and as dramatic transitions from living rooms to pool decks. The pivot action itself is balanced and deliberate. You push from almost any point on the panel and it swings open with a controlled motion that feels different from a traditional door, and that difference is exactly why architects and homeowners keep specifying it.
For Pompano Beach buyers, the practical side matters as much as the look. The aluminum won’t rust in salt air the way a steel door will. The thermal break prevents condensation on the interior frame during humid summer months. And because we install to AAMA 2400/2410 standards with perimeter sealing done per AAMA 812, the door performs as well as it photographs.
Technical Specifications
The VLX 100’s dimensions and options are straightforward, but the details matter when you’re planning rough openings and sightlines. Here’s what the system delivers:
- Frame construction: Extruded aluminum with a 0.098-inch wall thickness, engineered for large-format panels without frame deflection.
- Profile width: 2.56 inches, giving the door a slim, minimal face while carrying the structural load.
- Maximum panel size: Up to 60 inches wide by 120 inches tall, which covers most single-panel pivot applications in Pompano Beach entryways.
- Glass options: Clear, frosted, obscure, Low-E, tempered, and laminated. Tempered and laminated are available together for impact-rated configurations.
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood-grain powder coat.
- Performance compliance: NFRC-rated thermal performance with thermal break technology; AAMA 2400/2410 installation standard; AAMA 812 perimeter sealant protocol.
Performance Features
Thermal Efficiency. The frame carries a thermal break that separates interior and exterior aluminum faces, which cuts heat transfer through the extrusion. In Pompano Beach, that means a cooler interior frame surface and less condensation on humid mornings. NFRC-rated data helps you compare the VLX 100 against other systems on real numbers, not marketing claims.
Acoustic Performance. Laminated glass is the meaningful upgrade here. A laminated VLX 100 panel dampens road noise and neighborhood sound noticeably better than standard tempered glass, which matters on busier Pompano Beach streets like Atlantic Boulevard or Federal Highway frontage. The multi-point sealing system also reduces sound leakage around the perimeter.
Airtightness & Weather Seal. The frame is designed with a compression gasket system that seals evenly around the full perimeter, including the pivot points. Combined with our AAMA 812 low-expansion foam application at every perimeter joint during installation, the assembly resists air infiltration that would otherwise show up as drafts and humidity intrusion.
Waterproofing. A combination of gaskets, sill geometry, and perimeter sealing keeps wind-driven rain out. Pompano Beach gets serious afternoon thunderstorms in summer, and a pivot door’s bottom edge is the vulnerable line. The VLX 100’s sill design directs water away from the interior, and our installers verify drainage before we call the job done.
Wind Resistance. Impact-resistant laminated glass is available for the VLX 100, and we recommend it for most Pompano Beach applications, especially east of Dixie Highway where wind exposure is higher. South Florida building code requires impact protection or shutters in most residential replacement situations, and a laminated VLX 100 panel satisfies that requirement while keeping the open look.
Security & Hardware. The pivot mechanism itself is a security feature. There’s no exposed hinge to attack. The hardware set includes a multi-point locking option that secures the panel at top, bottom, and mid-height. The aluminum frame’s rigidity means the lock points actually hold, rather than flexing open under pressure.
Color & Glass Options
The VLX 100 comes in six finishes. Premium Black and Pure White are the most specified in modern Pompano Beach homes, where clean contrast against stucco or concrete is the goal. Anodized Silver has a natural metal character that suits commercial storefronts and industrial-style lofts. Bronze is a good middle ground, warmer than black but still dark enough to frame a view sharply. Champagne has a soft metallic warmth that works well with travertine and warm plaster interiors common in Mediterranean-style Pompano Beach houses. Teak Wood-grain gives the aluminum the look of natural wood with zero maintenance, which we recommend for buyers who love the timber aesthetic but don’t want to refinish a door every two years in salt air.
On glass: Clear maximizes the view and light. Frosted and Obscure provide privacy without blocking daylight, popular for courtyard entries and front doors on busier streets. Low-E coating reduces solar heat gain, which matters when a door faces west or southwest. Tempered glass is safety-rated and required for most door applications by building code. Laminated glass is the impact and sound upgrade, and it’s what we recommend for any VLX 100 in a wind-borne debris zone.
Installation by TruePane Windows & Doors in Pompano Beach
A pivot door is only as good as the installation behind it. A pivot panel that’s even slightly out of level will bind, wear hardware unevenly, and eventually fail. A frame that’s not sealed properly will leak air and water. These doors are not forgiving of shortcuts, and the manufacturer’s warranty depends on proper installation from the first day.
That’s why every VLX 100 we install in Pompano Beach goes through a defined process. We start with a pre-installation inspection of the rough opening, checking dimensions, substrate condition, and drainage plane. If the opening isn’t right, we address it before the door arrives, not after. We set the frame level, plumb, and square, anchoring to structure, not just trim. We apply AAMA 812 low-expansion foam sealant at every perimeter joint. We install per AAMA 2400/2410 standards, which cover the full installation methodology for fenestration products in commercial and high-end residential applications. Then we water-test the sill and lower corners, verify the pivot action, adjust the panel for even gaps, and clean up the site.
Pompano Beach-specific conditions matter here. The humidity is relentless. The summer rain comes hard and sideways. Salt air accelerates corrosion on hardware and unanodized aluminum. Code enforcement in Pompano Beach requires impact-rated glazing in most residential exterior door replacements. We know these requirements and we build our installation around them, not around what’s easiest to schedule.
Improper installation voids the manufacturer warranty on any ViewLux product. That alone makes a licensed, experienced installer worth the cost. When we install it, the warranty is honored, the door performs as designed, and you’re not fighting drafts and leaks two years later.
Frequently Asked Questions - VLX 100 Pivot Door
Most VLX 100 orders in Pompano Beach take 4 to 6 weeks from order placement to delivery at our shop, depending on glass type, finish, and panel size. Custom sizes and impact-rated laminated glass can extend that window. Call (863) 591-8673 and we’ll give you a current lead time based on your exact configuration.
The VLX 100’s NFRC-rated thermal performance may qualify in certain configurations, but eligibility depends on the specific Low-E glass package, your home’s location, and current federal and state program rules. We can provide the performance documentation you or your tax professional need. Call (863) 591-8673 and we’ll run the numbers for your Pompano Beach project.
Warranty coverage is provided through ViewLux as the manufacturer and remains valid when the door is installed by an authorized partner like TruePane Windows & Doors. Specific coverage terms depend on the product line and finish selection. We’ll walk you through the warranty details before you commit. Schedule your free measurement at (863) 591-8673.
Yes, the VLX 100 is built to your opening rather than pulled from a stock size, up to the system maximum of 60 inches wide by 120 inches tall. We measure your actual rough opening in Pompano Beach and order the panel to fit, rather than forcing your opening to match a standard door. Call (863) 591-8673 to schedule a measurement.
Aluminum frames with powder coat or anodized finishes need little maintenance: rinse with fresh water every few months to remove salt residue, clean with mild soap and water, and avoid abrasive cleaners that can scratch the finish. The VLX 100’s extruded aluminum won’t rust, and the finishes hold up well in coastal environments. We’ll cover care instructions with you at installation. Call (863) 591-8673 for a quote and we’ll answer any maintenance questions on site.
Get a Quote - VLX 100 Pivot Door in Pompano Beach
If you’re planning an entryway or remodel in Pompano Beach and want the VLX 100 Pivot Door in your space, the next step is a free on-site measurement. We’ll confirm sizing, review glass and finish options, and give you a written quote. Call TruePane Windows & Doors at (863) 591-8673 to schedule yours.
Written by the team at TruePane Windows & Doors, serving Pompano Beach, FL.
